Name: Automatic CNC Stainless Steel Kitchen Sink Bowl Maker Seam Welding Machine with Pump Motor Type
Brand: Guangdong Hwashi Technology inc.
SKU: WL-FS -100K
Price: 225,000.00 USD
Availability: InStock

Дом > продукты > Сварочный аппарат шва >

Automatic CNC Stainless Steel Kitchen Sink Bowl Maker Seam Welding Machine with Pump Motor Type

CNC stainless steel sink welder

automatic seam welding machine

pump motor sink bowl maker

Place of Origin:

China

Фирменное наименование:

Hwashi

Сертификация:

CE,CCC,ISO

Model Number:

WL-FS -100K

Свяжитесь мы

Спросите цитату

Детали продукта

Product Name:

Stainless Steel Kitchen Sink Seam Welding Machine

Abrasive Belt Width:

Semi-automatic sink welding

Size:

780x1250x1800mm

Control System:

PLC

Welding Width:

5-20mm

Minimum Welding Thickness:

0.2mm

Voltage:

380V,2 Phase,50/60Hz

Machine Type:

Resistance Welding Machine

Service Life:

8-10 years

weight (kg):

400KG

Условия оплаты & доставки

Minimum Order Quantity

Цена

Подлежит обсуждению

Packaging Details

sea worthy wooden package

Delivery Time

7-30 working days after received your payment

Payment Terms

T/T, L/C

Supply Ability

50 sets per month

СОБЩЕННЫЕ ПРОДУКТЫ

Видео

Automatic CNC Stainless Steel Kitchen Sink Bowl Maker Seam Welding Machine with Pump Motor Type

Получите самую лучшую цену

Видео

Three Phase 380 V Bathroom Sink Seam Welding Machine 780x1500x1800mm

Получите самую лучшую цену

Видео

Three Phase 380 V Bathroom Sink Seam Welding Machine 780x1500x1800mm

Получите самую лучшую цену

Видео

HWASHI Roller Spot Welder Ventilation Duct Manual Tin Can Side Seam Welding Machine Roll to Roll Banner Welder

Получите самую лучшую цену

Свяжитесь мы

+8613380655800

marketing@hwashi.com

Контакт теперь

Характер продукции

Product Description

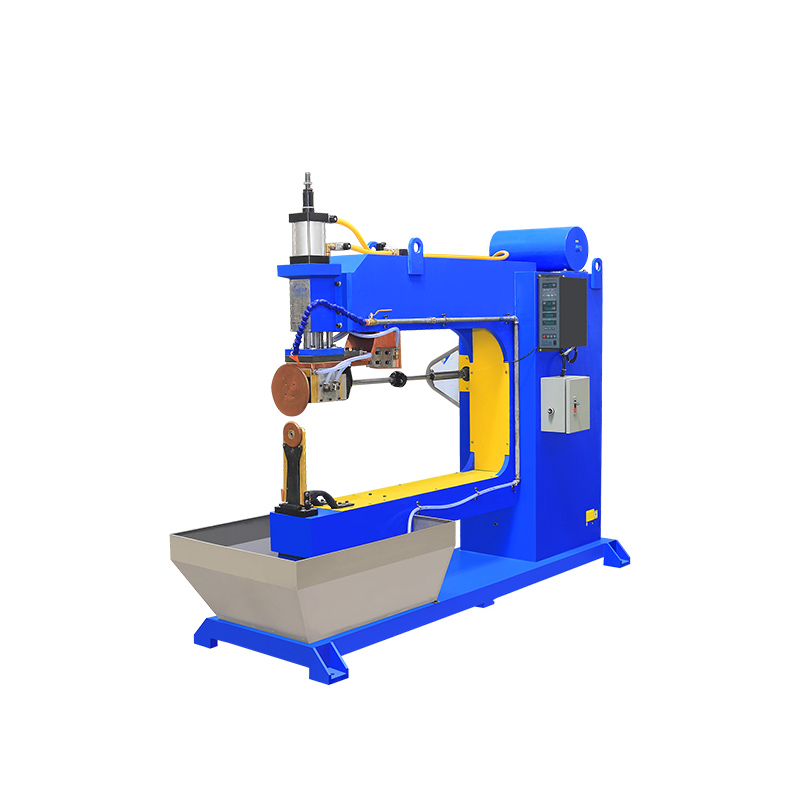

Automatic CNC Stainless Steel Kitchen Sink Bowl Maker Seam Welding Machine with Pump Motor Type Kitchen Sink

Feature

The kitchen sink automatic welding machine utilizes theseam welding principle to replace the spot welding electrodewith circle welding wheel. When the welding wheel rollscontinuouslyorintermittently under continuous or intermittentcurrent pulse, the welding seam which is composed of seriesof welding spots will be formed,As long as input the datelike coordinate date of position ofwelding products, weldingcurrent, etc., then after turning on the machine, the weldingtrack will automatically finish welding product within thepreset procedure.The worker only need to put the work pieceonto the certain place and then take it away when finishingwelding.

Intelligent welding control system

Intelligent Touch Screen Controller
Input and read welding parameters.

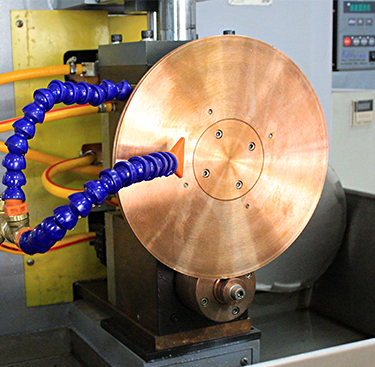

High quality super hard copper alloy welding wheel

Made of excellent material processing, not afraid of high temperature, not afraid of wear and tear, good electrical conductivity.

Shape structure and welding method

Design the right machine shape and mold according tothe welding product and extended welding arms.

Welding Method of The Seam Welding Machine

Adopt standardized welding electrode. Special electrode molds and welding methods can also be customized according to the product specification.

Features of The Seam Welding Machine

1. seam welding machine use the roller electrode to replace the cylindrical electrode of spot welding. 2. It will generate weld nuggets which will overlap with each other so as to achieve welding effect. 3. AC pulse current or amplitude modulation current will be adopted, but three (single)-phase rectification, medium frequency and high frequency DC are also available. 4. According to different overlap of the melting cores, it could be divided into roll spot welding and air-tight seam welding. 5. There exist three stages in the forming process of welding spots: pressurization, heating fusing and cooling crystallization like spot welding.

6. The welding wheel can be operated in both horizontal and vertical directions. 7. The transformer and the welding wheel adopt the forced water cooling circulation system, which has a high load duration and achieves Continuous and stable welding.

Specification

Model	Welding Wheel Running Way	input Voltage	input power	output Current
WL-FS- 15K	Horizontal	220/380V	15KW	10000A
WL-FS- 35K	Circle	220/380V	35KW	12000A
WL-FS- 50K	longltudinal	220/380V	50KW	12000A
WL-FS- 75K	Horizontal	380V	75KW	16000A
WL-FS- 100K	Horizontal	380V	100KW	24000A
WL-FS- MF40K	Circle	380V	40KW	19500A
WL-FS- MF150K	Horizontal	380V	150KW	40000A
WL-FS- MF250K	longltudinal	380V	250KW	50000A

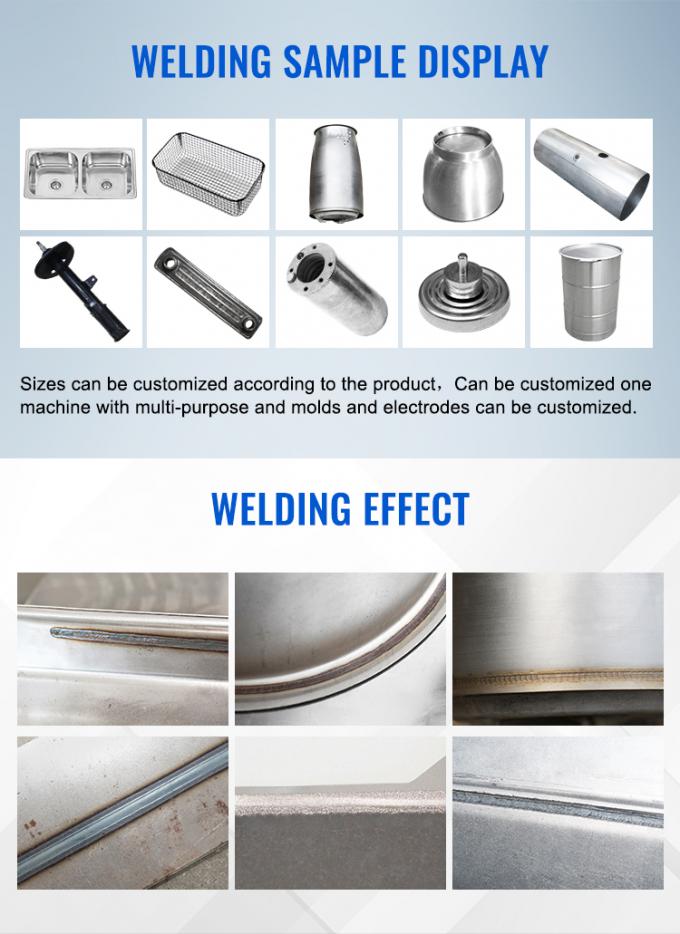

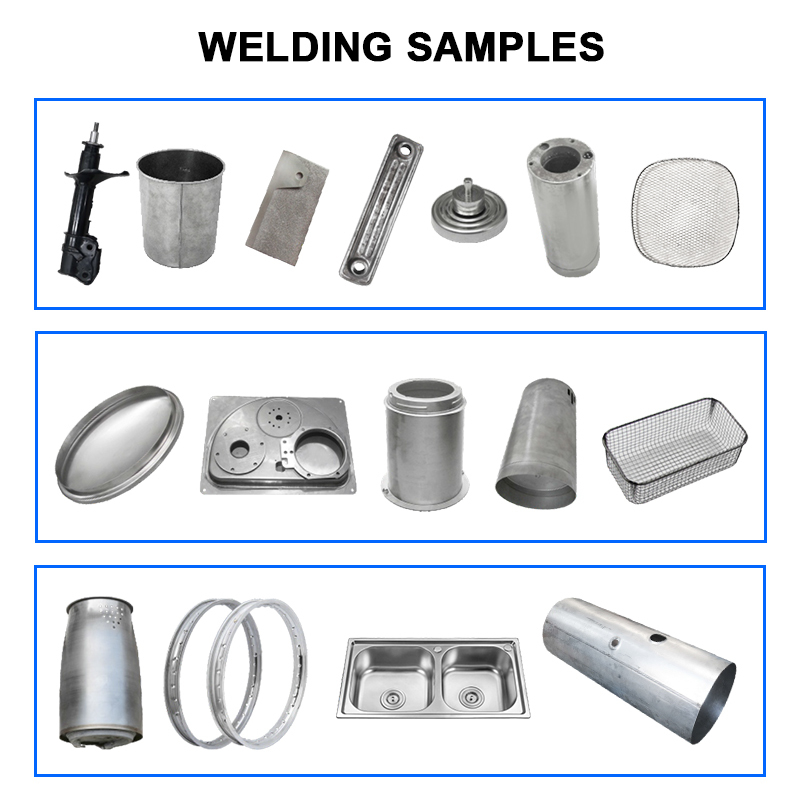

Application and samples

Application Industry of The Seam Welding Machine

Suitable for the welding of sheet, barrel body, box and sealed thin-wall container with different material, such as carbon steel, stainless steel, titanium, nickel and other materials. For fuel tank of automobile, damper of motorcycle, detector of temperature controller, nickel strap of battery, oil heater, power capacitor, sieve iron basket, water pump manufacturing, tin making, coopery industry, etc.
