Name: Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line
Brand: Guangdong Hwashi Technology inc.
SKU: WL-FS -100K
Price: 225,000.00 USD
Availability: InStock

Дом > продукты > Сварочный аппарат шва >

Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line

automatic sink rolling machine

welding production line equipment

water tank seam welder

Место происхождения:

Китай

Фирменное наименование:

Hwashi

Сертификация:

CE,CCC,ISO

Номер модели:

WL-FS -100K

Свяжитесь мы

Спросите цитату

Детали продукта

Название продукта:

Сварная машина для кухонной раковины из нержавеющей стали

Ширина абразивного ремня:

Полуавтоматная заварка раковины

Размер:

body{background-color:#FFFFFF} 非法阻断153 window.onload = function () { docu

Система управления:

ПЛК

Ширина сварки:

5-20 мм

Минимальная толщина сварки:

0,2 мм

Напряжение:

380В, 2 фазы, 50/60 Гц

Тип машины:

Машина для сварки сопротивления

Служба срока службы:

8-10 лет

Вес (кг):

400 кг

Условия оплаты & доставки

Количество мин заказа

Цена

Подлежит обсуждению

Упаковывая детали

Деревянный пакет моря

Время доставки

7-30 рабочих дней после получения оплаты

Условия оплаты

T/T, L/C.

Поставка способности

50 комплектов в месяц

СОБЩЕННЫЕ ПРОДУКТЫ

Видео

Stainless Steel Sink Grinding Machine CNC Automatic Sink Edge Polishing Machine

Получите самую лучшую цену

Видео

Устойчивая индивидуальная швейная/рулочная сварочная машина для топлива для самолётов

Получите самую лучшую цену

Видео

Высококачественная машина продольной роликовой сварки Hwashi для автоматической сварки швов топливного бака

Получите самую лучшую цену

Видео

Автоматическая CNC из нержавеющей стали Кухонная раковина для сварки швов

Получите самую лучшую цену

Свяжитесь мы

+8613380655800

marketing@hwashi.com

Контакт теперь

Характер продукции

Hwashi WL-AT-PM1200 Automatic Sink Rolling Wheel Grinding Machine,Water tank Welding Production Line

Adopt medium frequency inverter power source of welding and large flat platform of locating method. Use the servo motor to drive X axis (locating mould) and Y axis (welding electrode) to operate under the preset procedure of PLC data. According to the stored position of welding spot, the welding product will be located inside the mould and moves horizontally along the X direction. The welding electrode will be designed to move vertically along the Y direction. The welding electrode is able to conduct 360° of rotation under the control of servo motor so it is suitable for welding different angles of products. Suitable for welding the sink within the range of 1600x700x300mm. (customized)

Suitable for welding the sink within the range of 1600x700x300mm. (customized)
Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line 1

Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line 1

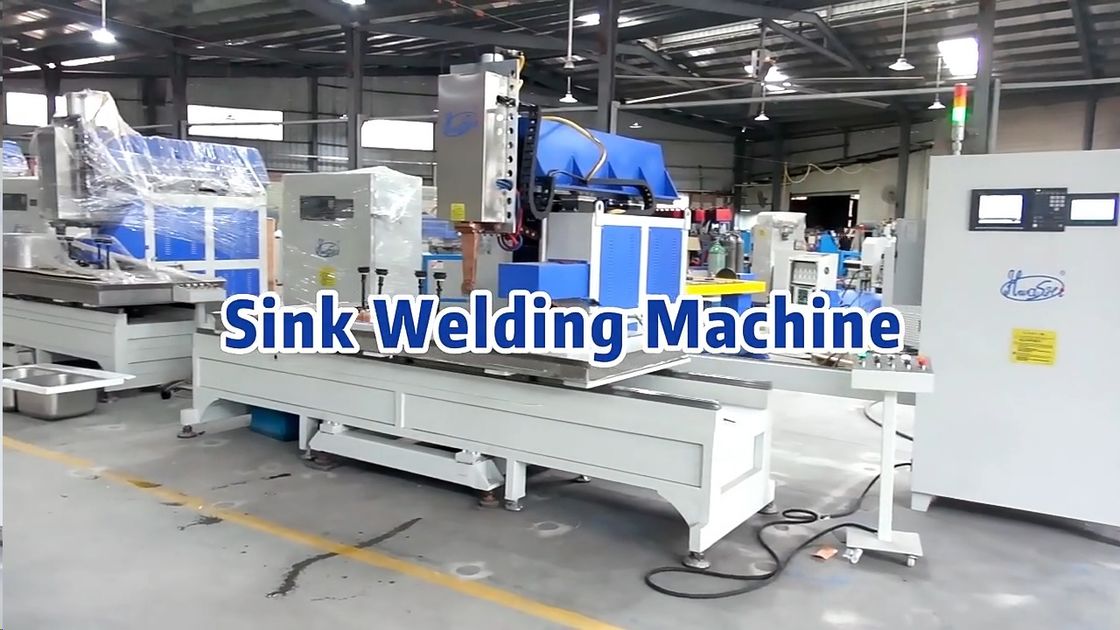

CNC 3 Axis Stainless Steel Sink Seam Welding Machine

CNC 3 Axis Control Stainless Steel Kitchen Sink Seam Welding Machine is a method that uses a pair of roller electrodes instead of the cylindrical electrodes of spot welding, and the welded workpiece moves between the rollers to produce a sealed weld with a molten core overlapping each other to weld the workpiece together. Adopt medium frequency inverter power source of welding and large flat platform of locating method. Use the servo motor to drive X axis (locating mould) and Y axis (welding electrode) to operate under the preset procedure of PLC data. According to the stored position of welding spot, the welding product will be located inside the mould and moves horizontally along the X direction. The welding electrode will be designed to move vertically along the Y direction. The welding electrode is able to conduct 360° of rotation under the control of servo motor so it is suitable for welding different angles of products. Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line 2

Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line 2

Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line 3

Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line 4

CNC Sink Edges Grinding and Polishing Machine

This is the special designed machine for grinding and polishing the seam after welding. Normally customer will choose to buy these two machines together so as to complete the production of kitchen sink. This CNC sink grinding special machine utilizes abrasive belt polishing principle. The abrasive belt is driven by electric motor to conduct polishing on the edge of the welded sink. There are two processes for polishing. Firstly, use the coarse abrasive belt to grind the redundant cutting edge and the projection welding spots. Then use the fine abrasive belt to conduct polishing treatment. After these two processes can meet the requirement of sink grinding and polishing treatment.
